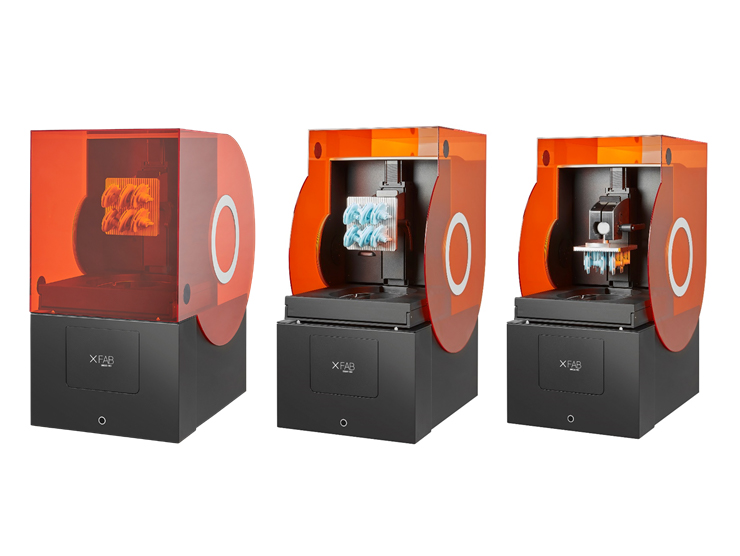

XFAB 3500PD 3D Printer
Advanced version of the XFAB series, the XFAB 3500PD combines great precision to the highest performances in terms of productivity, thus resulting in the perfect printer for companies from all industrial sectors.
Its design results ideal also for cluster installations.
Through the use of Nauta®+ and Fictor® software, the customization of parameters allows the production of the highest precision models used in design and industrial applications.
Main Features of XFAB 3500PD 3D Printer :
- Fast and highly precise stereolithographic 3D printer
- Complete range of professional DWS materials
- Built-in PC
- “Plug & Play” system
- TTT System - Tank Translation Technology that reduces wear and tear of tanks
Technical Specification of XFAB 3500PD 3D Printer :
| Technology | Laser Stereolithography |
|---|---|
| Working Area | 160(x) x 160(y) x 180(z)mm with chamfered corners |
| Laser Source | Solid State BlueEdge® |
| Slice Thickness | 10-100 microns (depending on the type of material used) |
| Scanning Method | Galvanometer |
| Software | Fictor® XFAB Edition and Nauta®+ included |
| Input File Format | stl, .slc, .nauta, .fictor, .mkr, .3dm, 3ds, .ply, .obj, .lwo, .x |
| Machine Size | 400 x 606 x 880 mm |
| Weight | 42 Kg |
| Operating Temperature and Humidity | 20°-25°C / 60% |
| Power Supply | 24V DC with AC 240/100V / 50-60 Hz external supplier included |
| Electrical Consumption | 160W |
| PC Minimum Requirements | Windows 8 or higher* |
| Memory | RAM 4 GB* |
| Graphics Card | OpenGL 2.0 compatible or above* |
| I/O Interfaces | 1 USB port - 1 Ethernet TCP/IP port |
| Connectivity | 1 active internet connection |
* Built-in PC, the minimum requirements are expressed in order to operate Nauta®+ with an external PC (not included). The recommended requirements may vary in accordance with the complexity of the file to be printed.
