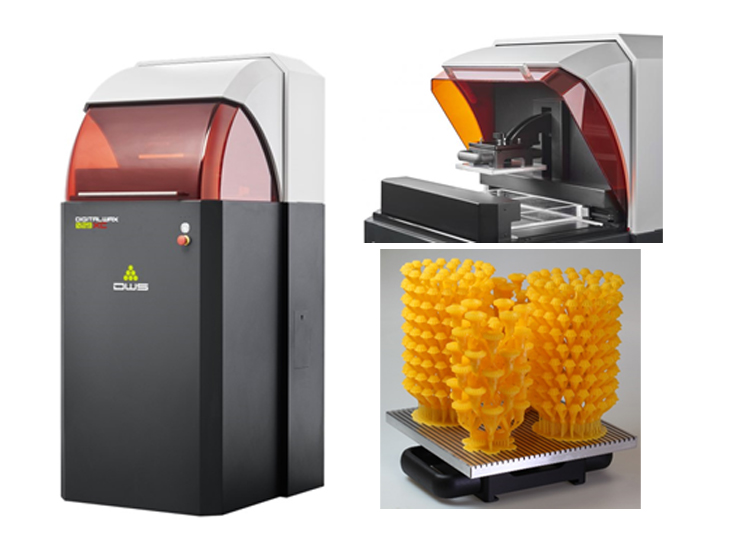

DW 029XC / DW 029XCHR 3D Printer
DW 029XC is a solution for rapid manufacturing designed for medium-high production volumes. It grants high speed, precision and an increased working area to maximize the productivity.
DW 029XC runs both the proprietary Nauta+ software (that allows the automatic generation of supports) and its special (optional) module XCluster dedicated to the easy building of trees for lost wax casting productions.
Thanks to the combination among materials, its precision and the specifically designed software, the workflow becomes totally digital and automated.
This increases productivity, reduces time-to-market, production times and consequently costs in the different application fields.
With extremely low running and maintenance costs, the printer has been designed to operate continuously, always ensuring the maximum reliability and consistency. Available also in HR laser version (model DW 029XCHR).
Main Features of DW 029XC :
- Very high resolution and precision
- Fully digital and automated workflow
- Increased productivity
- Reduction of costs and production times
- Complies to Industry 4.0
- TTT System - Tank Translation Technology that optimizes the wear of the resin tank
- Low maintenance costs
Technical Specification of DW 029XC :
| Technology | Laser Stereolithography |
|---|---|
| Working Area | 170 x 170 x 200 mm |
| Laser Source | Solid State BlueEdge® |
| Slice Thickness | 10-100 microns (depending on the type of material used) |
| Scanning Method | Galvanometer |
| Software | Nauta®+ and Fictor® included |
| Input File Format | stl, .slc, .nauta, .fictor, .mkr, .3dm, 3ds, .ply, .obj, .lwo, .x |
| Machine Size | 610 x 660 x 1400 mm |
| Weight | 150 Kg |
| Operating Temperature and Humidity | 20°-25°C / 60% |
| Power Supply | AC 230V / 50 Hz |
| Electrical Consumption | 500W |
| PC Minimum Requirements | External PC included |
| I/O Interfaces | 1 USB port - 1 Ethernet TCP/IP port |
| Connectivity | 1 Active internet connection |
