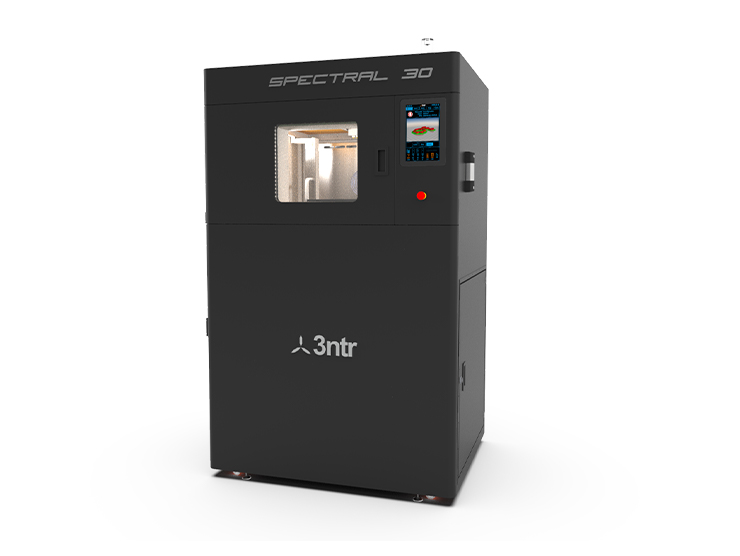

SPECTRAL 30 3D Printer is the 3ntr platform created to address the most complex markets and the most extreme challenges of manufacturing with an eye to the future.
SPECTRAL 30 3D Printer is equipped with development and temperature control systems such as to guarantee the printing of very high performance superpolymers such as Peek Peak, Ultem, PPS with extraordinary results for functionality and aesthetics, also thanks to the control of the kinematics.
Careful handling of materials
Additive manufacturing with high performance polymers requires proper care.
In SPECTRAL 30 3D Printer there are 4 units VENTO to manage the drying of the filament with minimum energy, protecting it over time himself from any contamination.
In fact, no other machine on the market can use up to 4 extruders in the same very high temperature print (250°C).
Max print volume | Nozzles | Nozzles / chamber max temperature | XYZ mechanical precision | Min / max thickness of the layer | Dimensions and weight |
---|---|---|---|---|---|
300x300x300 mm | 4 | 500°C / 250°C | 0,005 mm | 0,1 / 0,6 mm | 1158(L)x882(P)x1788(H) mm Peso: 400 Kg |
