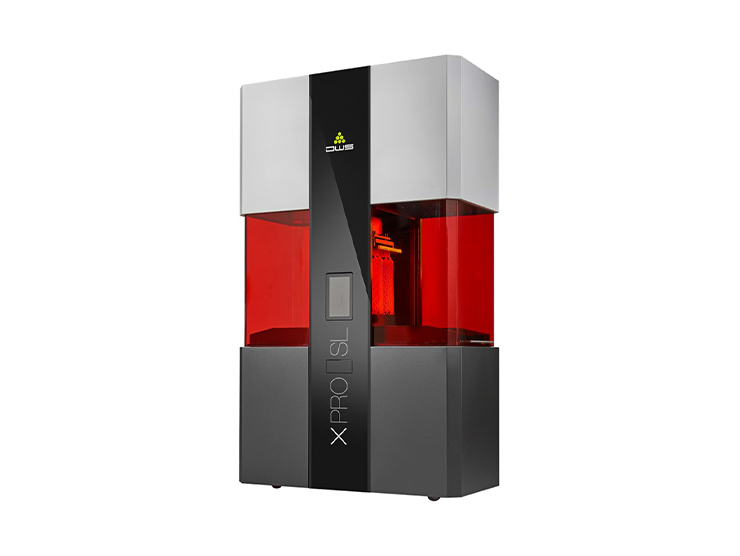

XPRO SL 3D Printer
The innovative DWS 3D printer for industrial applications, sports gear, cosmetics, automotive, aerospace and more.
XPRO SL is the ideal choice for companies in need for producing in a short time very huge quantities of models and big objects with optimal results.
High productivity and precision, joined by a wide range of materials, make this printer versatile and suitable for almost any kind of industrial application.
XPRO SL benefits from the wide range of materials already consolidated for industrial applications and all the main materials of the jewellery range.
Main Features of XPRO SL :
- Provided with an integrated touch screen monitor PC
- Low running and maintenance costs
- Exceptional value/price ratio
- 500 mm Z axis for a maxi working area
- TTT System – Tank Translation Technology that optimizes wear and tear of tanks
Technical Specification of XPRO SL :
| Technology | Laser Stereolithography |
|---|---|
| Working Area | 300 x 300 x 500 mm |
| Laser Source | Solid State BlueEdge® |
| Slice Thickness | 10-100 microns (mechanical resolution, the actual value depends on the material used) |
| Scanning Method | Galvanometer |
| Software | Fictor® and Nauta®+ included |
| Input File Format | stl, .slc, .nauta, .fictor, .mkr, .3dm, 3ds, .ply, .obj, .lwo, .x |
| Machine Size | 704 x 1446 x 2420 mm |
| Weight | 550 Kg |
| Operating Temperature and Humidity | 20°-25°C / 60% |
| Power Supply | AC 230V / 50 Hz |
| Electrical Consumption | 500W |
| PC Minimum Requirements | Windows 8 or higher* |
| Memory | RAM 4 GB* |
| Graphics Card | OpenGL 2.0 compatible or above* |
| I/O Interfaces | 1 USB port - 1 Ethernet TCP/IP port |
| Connectivity | 1 Active internet connection |
* Built-in PC, the minimum requirements are expressed in order to operate Nauta®+ with an external PC (not included). The recommended requirements may vary in accordance with the complexity of the file to be printed.
