PP Structural Bubble Panels SAGEC

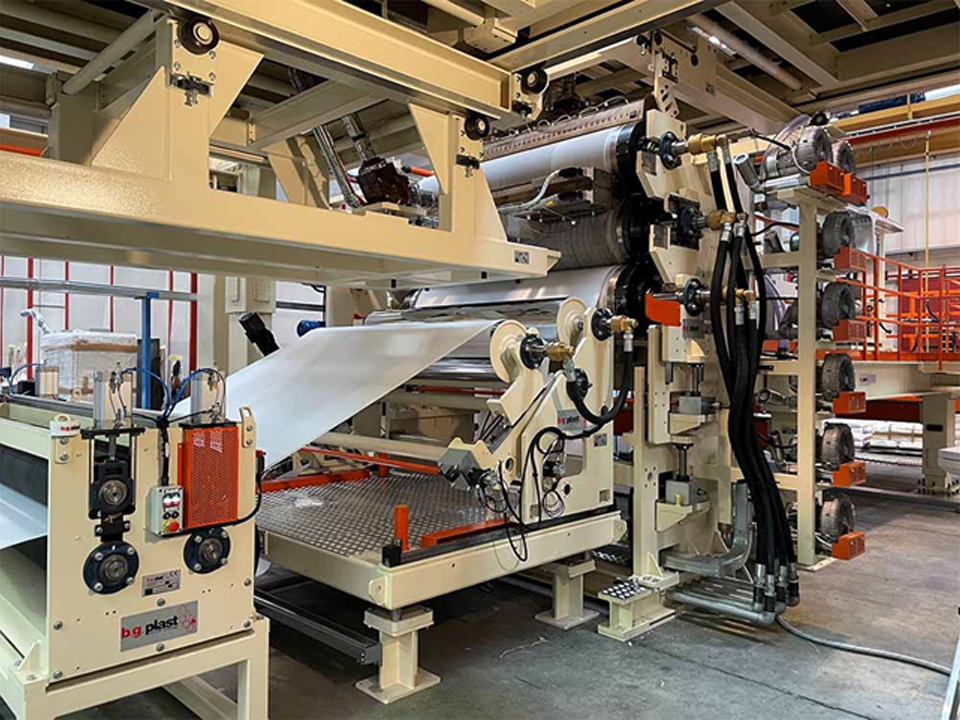

SAGEC is an innovative patented Extrusion System, suitable to produce multilayer bubble boards in thermoplastic materials having the inner core layer made of a three-dimensional construction (available on request in different geometries).
The innovative solution consists in producing the boards in one shot through a new concept of BG Plast calendaring system!
PP (Polypropylene) structural bubble panels, like those from SAGEC, are specialized lightweight composite panels often used in various industries for their durability, insulation properties, and strength-to-weight ratio. These panels incorporate air-filled bubbles or cavities in their design to reduce weight while maintaining structural integrity.
Technical Specification of PP Structural Bubble Panels :
- Thickness range from 4 mm to 10 mm
- Net width 1300 mm and 2000 mm
- Production range from 300 to 600 kg/h
Features of PP Structural Bubble Panels :
The boards produced with SAGEC system will have the following features:
- Material : Made from Polypropylene (PP), which is a thermoplastic polymer known for its chemical resistance, elasticity, and toughness.
- Bubble Structure : These panels have a cellular or bubble structure that creates air pockets within the material, reducing weight without sacrificing mechanical strength.
- Lightweight : Due to the air-filled cavities, these panels are significantly lighter than solid materials, making them ideal for applications requiring weight efficiency.
- Strength : Despite being lightweight, the structural design provides high strength and rigidity, suitable for load-bearing applications. High strength in both MD and CD directions.
- Thermal and Acoustic Insulation : The bubble design helps provide excellent thermal and acoustic insulation due to the air pockets, which act as insulators.
- Durability : PP is resistant to moisture, chemicals, and corrosion, making these panels durable in harsh environments.
- 100% recyclable
- Easy to be laminated with pre-printed film, non-woven fabrics or carpets
- High delamination resistance
- Printable
Applications of SAGEC PP Bubble Panels: :
The boards produced with SAGEC system will have the following features:
- Automotive Industry : Used for lightweight structural components that improve fuel efficiency.
- Construction : Employed as insulating and structural materials in walls, floors, or partitions.
- Packaging : Due to their lightweight and impact-resistant nature, they can be used in protective packaging solutions.
- Marine and Aerospace : These panels are ideal for weight-sensitive applications such as boats and aircraft.
