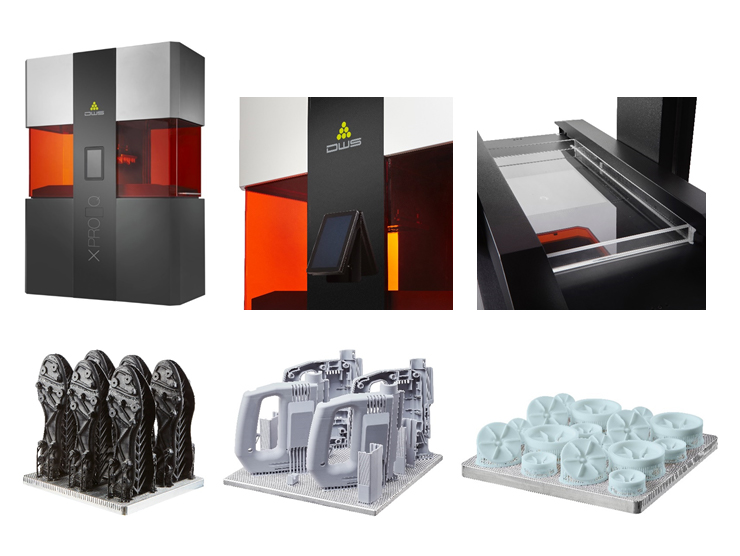

XPRO Q 3D Printer
XPRO Q is a 3D printing system developed for big production volumes and the ideal solution for large scale processes requiring maximum precision and resolution.
It ensures high productivity thanks to the wide working area 300 x 300 x 300 mm and print speed.
It can use a wide range of materials developed by DWS and it is, thus, able to materialize industrial applications with accuracy and speed.
Available also in HR laser version (XPRO QHR).
Main Features of XPRO Q 3D Printer :
- 4 Solid State BlueEdge® laser sources working at the same time that guarantee the reduction of production times without influencing the highest resolution
- TTT System - Tank Translation Technology that optimizes wear and tear of tanks
- Provided with an integrated monitor touch screen PC
- Suitable also for cluster configurations system
Technical Specification of XFAB 3500PD 3D Printer :
| Technology | Laser Stereolithography |
|---|---|
| Working Area | 300 x 300 x 300 mm |
| Laser Source | Solid State BlueEdge® |
| Slice Thickness | 10-100 microns (mechanical resolution, the actual value depends on the material used) |
| Scanning Method | Quad-Galvanometer |
| Software | Fictor® and Nauta®+ included |
| Input File Format | stl, .slc, .nauta, .fictor, .mkr, .3dm, 3ds, .ply, .obj, .lwo, .x |
| Machine Size | 704 x 1446 x 2048 mm |
| Weight | 500 Kg |
| Operating Temperature and Humidity | 20°-25°C / 60% |
| Power Supply | AC 230V / 50 Hz |
| Electrical Consumption | 500W |
| PC Minimum Requirements | Windows 8 or higher* |
| Memory | RAM 4 GB* |
| Graphics Card | OpenGL 2.0 compatible or above* |
| I/O Interfaces | 1 USB port - 1 Ethernet TCP/IP port |
| Connectivity | 1 active internet connection |
* Built-in PC, the minimum requirements are expressed in order to operate Nauta®+ with an external PC (not included). The recommended requirements may vary in accordance with the complexity of the file to be printed.
